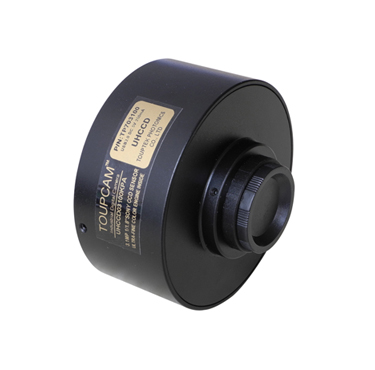

PUDA ®510万专业显微镜相机
SONY CCD SENSOR & DSP CHIP
采用日本索尼高性能传感器芯片及数字处理电路
USB2.0 | High-Resolution | Perfect Color
USB2.0 高速通讯，高分辨率、精准的色彩还原处理
ULTRA-FINE COLOR ENGINE
Ultra-FineTM 色彩渲染技术
HARDWARE CONFIGURATION 硬件配置参数:
|
Image Pickup Device 图像传感器
|
SONY ICX452AQ CCD （彩色）
|
|
Scan Mode 扫描模式
|
Interlaced 隔行扫描
|
|
Max. Resolution 最高分辨率
|
2592 x 1944 (Approx. 5,040,000 Pixels)
|
|
Sensor Size(Diagonal) 传感器尺寸
|
1/1.8“ (Diagonal 9.04mm)
|
|
Pixel Size 像元尺寸
|
2.775µm x 2.775µm
|
|
Imaging Area 传感器有效影像区域
|
8.23mm(H) x 6.68mm(V)
|
|
GSensitivity 灵敏度
|
260mV with 1/30sAccumulation
|
|
Dynamic Range 动态范围
|
70dB
|
|
A/D Converter 模数转换
|
12-bit Parallel, 8-bit R.G.B to PC
|
|
SN Ratio 信噪比
|
62dB
|
|
Spectral Range 光谱响应
|
380-650nm(with IR-filter)
|
|
Video Format & Frame Rate 视频模式
|
4fps @2592 x 1944, 35fps @300 x 200 (Multiple Speed Level)
|
|
Binning 像素叠加
|
1 x 1, 2 x 2
|
|
Exposure 曝光能力
|
0.212ms~77.503ms, ROIAuto & Manual
|
|
Whitebalance 白平衡
|
OnePush ROI WhiteBalance/Manual Temp-TintAdjustment
|
|
Color Rendering Technique 色彩渲染技术
|
Ultra FineTM Color Engine
|
|
Peak Quantum Efficiency 峰值量子效率
|
35%
|
|
Readout Noise 读出噪音
|
N/A
|
|
Extinction Ratio 消光比
|
N/A
|
|
Smear
|
N/A
|
|
Capture/Control API 软件接口
|
DirectShow ,Twain
|
|
Recording System 记录模式
|
Still Picture and Movie
|
|
CoolingSystem* 制冷系统
|
Nature, Optional: PELTIER (Semiconductor Cooling Module)
|
OPERATING ENVIRONMENT 操作及存储环境要求:
|
Operating Temperature 工作温度
|
-10℃~ 50℃
|
|
Storage Temperature 储存温度
|
-20℃~ 60℃
|
|
Operating Humidity 工作湿度
|
30~80%RH
|
|
Storage Humidity 储存湿度
|
10~60%RH
|
|
PowerSupply 供电
|
DC 5V over PC USB port
|
SOFTWARE ENVIRONMENT 软件运行环境要求:
|
OperatingSystem 操作系统
|
Microsoft® Windows® XP /Vista / 7 (32 & 64 bit)
|
|
PC Requirements 电脑配置
|
CPU: Equal to Intel Core2 2.8GHz or higher
|
|
Memory:2GB or more
|
|
USB port:USB2.0 High-speed Port
|
|
Display:17" orlarger
|
|
CD-ROM
|
